HSK

Short Description:

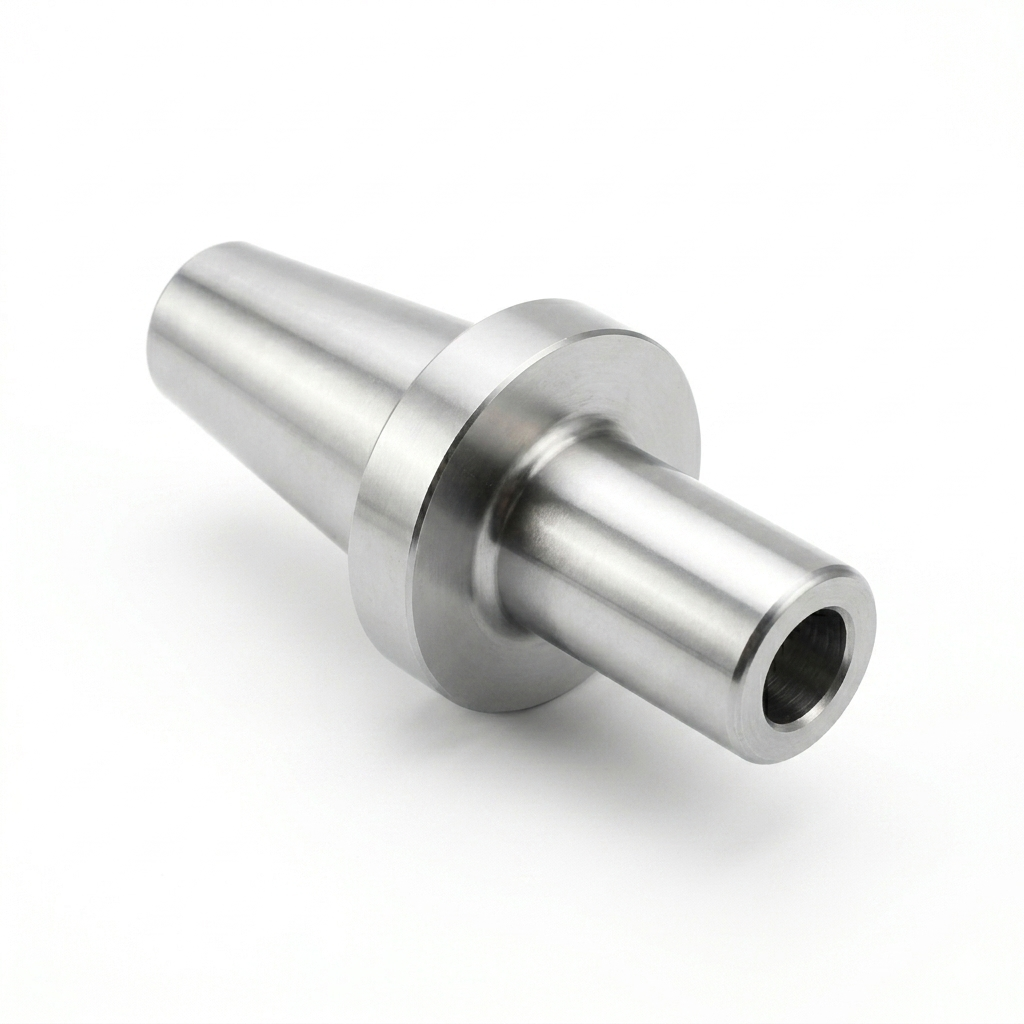

Shrink Fit Chucks Specifications

Order No.	Model	d	D	D1	L	C	Wt
BST.23110-001-03080	HSK50F-SF03-080L	3	15	20	80	14	0.45
BST.23110-001-04080	HSK50F-SF04-080L	4	15	20	80	17	0.5
BST.23110-001-05080	HSK50F-SF05-080L	5	15	20	80	20	0.5
BST.23110-001-06080	HSK50F-SF06-080L	6	21	27	80	36	0.6
BST.23110-001-08080	HSK50F-SF08-080L	8	21	27	80	36	0.6
BST.23110-001-10085	HSK50F-SF10-085L	10	24	32	85	42	0.65
BST.23110-001-12090	HSK50F-SF12-090L	12	24	32	90	47	0.68
BST.23110-001-14090	HSK50F-SF14-090L	14	27	34	90	47	0.73
BST.23110-001-16095	HSK50F-SF16-095L	16	27	34	95	50	0.73
BST.23110-001-18095	HSK50F-SF18-095L	18	33	42	95	50	0.9
BST.23110-001-20100	HSK50F-SF20-100L	20	33	42	100	52	0.95
BST.23210-001-03080	HSK63F-SF03-080L	3	15	20	80	14	1.7
BST.23210-001-04080	HSK63F-SF04-080L	4	15	20	80	17	0.82
BST.23210-001-05080	HSK63F-SF05-080L	5	21	27	80	20	1
BST.23210-001-06080	HSK63F-SF06-080L	6	21	27	80	36	1
BST.23210-001-08080	HSK63F-SF08-080L	8	24	32	80	36	1.15
BST.23210-001-10085	HSK63F-SF10-085L	10	24	32	85	42	1.15
BST.23210-001-12090	HSK63F-SF12-090L	12	27	34	90	47	1.2
BST.23210-001-14090	HSK63F-SF14-090L	14	27	34	90	47	1.2
BST.23210-001-16095	HSK63F-SF16-095L	16	33	42	95	50	1.45
BST.23210-001-18095	HSK63F-SF18-095L	18	33	42	95	50	1.44
BST.23210-001-20100	HSK63F-SF20-100L	20	44	53	100	52	1.85
BST.23210-001-25115	HSK63F-SF25-115L	25	44	52.5	115	58	1.7
