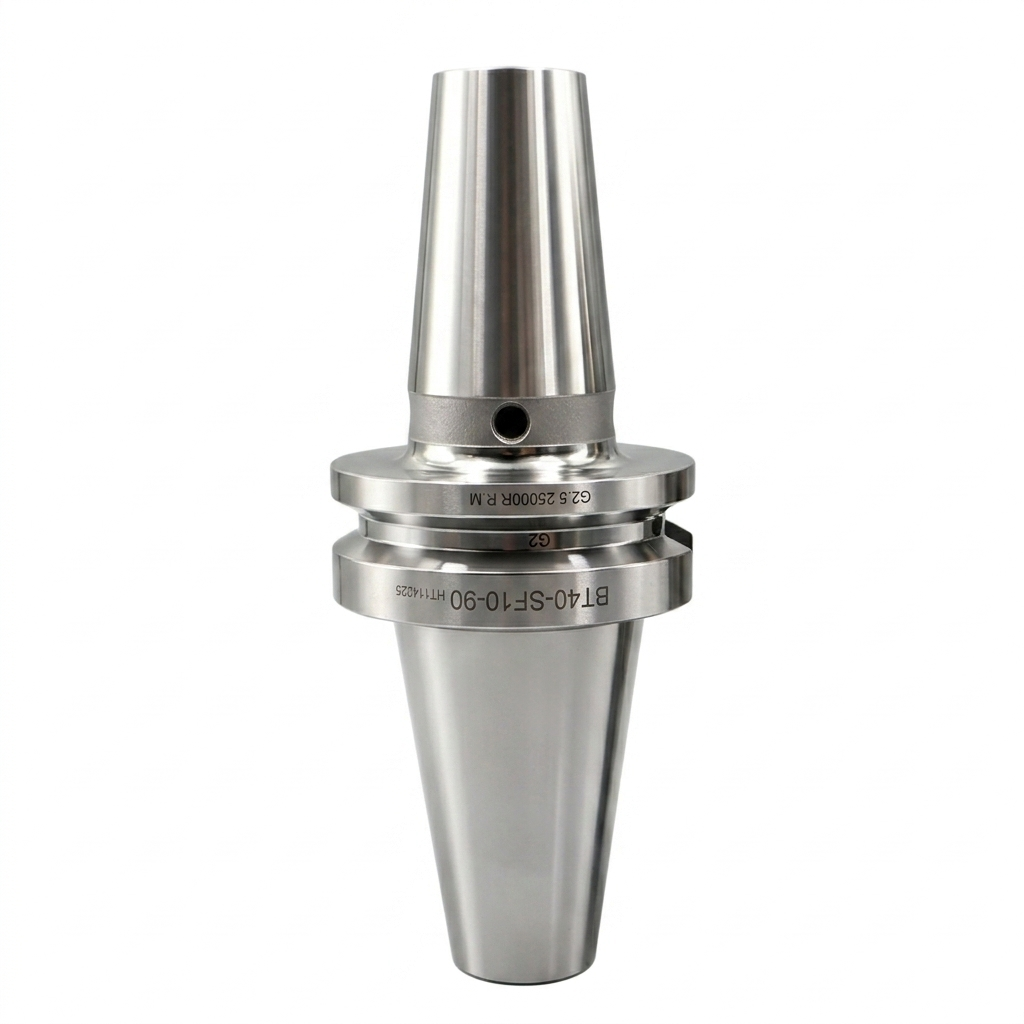

BT40

Short Description:

Shrink Fit Chucks

JISB6339 BT

Unit: Size (mm)

Model	–	D	D1	D2	L	L1	M	N	P	R	R1	Fig
BT40-SF03-90	BT40	3	10	–	90	9	–	–	–	6	–	A
BT40-SF03-120	BT40	3	10	–	120	9	–	–	–	6	–	A
BT40-SF03-130	BT40	3	10	–	130	9	–	–	–	6	–	A
BT40-SF04-90	BT40	4	10	–	90	12	–	–	–	6	–	A
BT40-SF04-120	BT40	4	10	–	120	12	–	–	–	6	–	A
BT40-SF04-130	BT40	4	10	–	130	12	–	–	–	6	–	A
BT40-SF05-90	BT40	5	10	–	90	15	–	–	–	6	–	A
BT40-SF05-120	BT40	5	10	–	120	15	–	–	–	6	–	A
BT40-SF05-130	BT40	5	10	–	130	15	–	–	–	6	–	A
BT40-SF06-90	BT40	6	21	27	90	36	M5×0.8	10	–	2	–	A
BT40-SF06-120	BT40	6	21	27	120	36	M5×0.8	10	–	10.5	–	A
BT40-SF06-130	BT40	6	21	27	130	36	M5×0.8	10	–	10.5	–	A
BT40-SF06-160	BT40	6	21	27	160	36	M5×0.8	10	55	4	200	B
BT40-SF06-200	BT40	6	21	27	200	36	M5×0.8	10	55	4	200	B
BT40-SF08-90	BT40	8	21	27	90	36	M6×1	10	–	2	–	A
BT40-SF08-120	BT40	8	21	27	120	36	M6×1	10	–	10.5	–	A
BT40-SF08-130	BT40	8	21	27	130	36	M6×1	10	–	10.5	–	A
BT40-SF08-160	BT40	8	21	27	160	36	M6×1	10	55	4	200	B
BT40-SF08-200	BT40	8	21	27	200	36	M6×1	10	55	4	200	B
BT40-SF10-90	BT40	10	24	32	90	42	M8×1	10	–	2	–	A
BT40-SF10-120	BT40	10	24	32	120	42	M8×1	10	–	8	–	A
BT40-SF10-130	BT40	10	24	32	130	42	M8×1	10	–	8	–	A
BT40-SF10-160	BT40	10	24	32	160	42	M8×1	10	55	2	350	B
BT40-SF10-200	BT40	10	24	32	200	42	M8×1	10	55	2	350	B
BT40-SF12-90	BT40	12	24	32	90	47	M10×1	10	–	2	–	A
BT40-SF12-120	BT40	12	24	32	120	47	M10×1	10	–	8	–	A
BT40-SF12-130	BT40	12	24	32	130	47	M10×1	10	–	8	–	A
BT40-SF12-160	BT40	12	24	32	160	47	M10×1	10	55	2	350	B
BT40-SF12-200	BT40	12	24	32	200	47	M10×1	10	55	2	350	B
