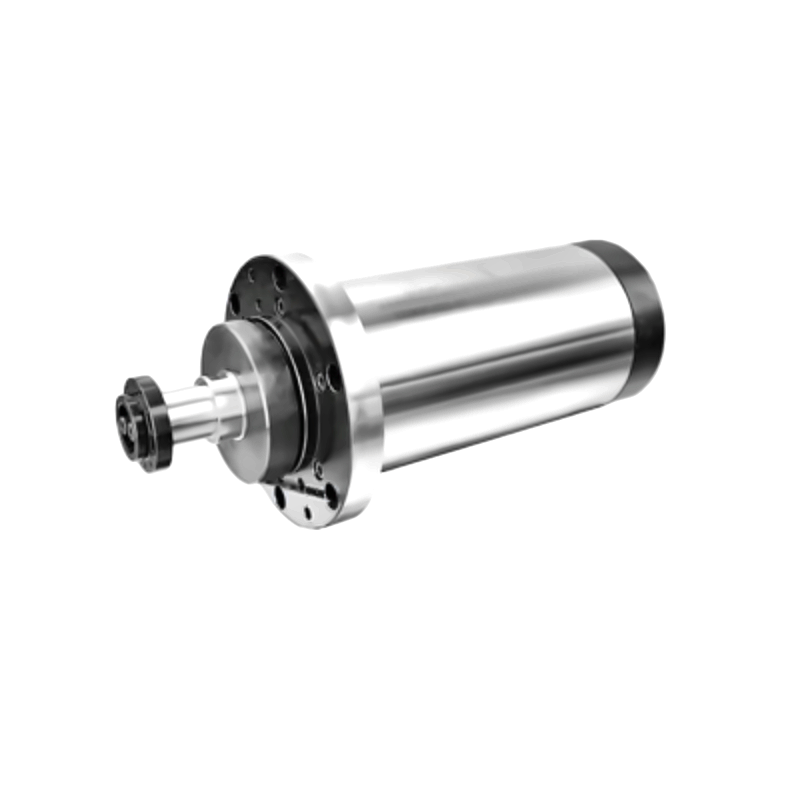

Grinding wheel correction spindle
| Spindle Model Type |
Motor Parameters | Mounting Size | Motor Type | Cooling Mode | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
Power KW(S1) |
Voltage V |
Current A |
Frequency HZ |
Torque N.m |
||||
| HX80-3-4Z/1.5 | 3000-4000 | 1.5 | 380 | 1.5 | 200 | 4.75N.m | Φ40 | PMSM | ICW/SW |
| HX90-3-4Z/1.5 | 3000-4000 | 1.5 | 380 | 1.92 | 200 | 4.75N.m | Φ50 | PMSM | ICW/SW |
| HX110-3-6Z/3 | 3000-6000 | 3 | 380 | 6.4 | 400 | 9.55N.m | Φ50 | PMSM | ICW/SW |
